NEW!

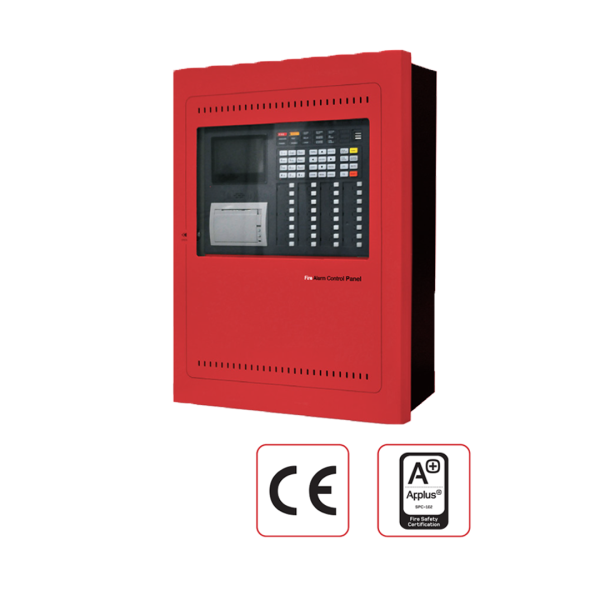

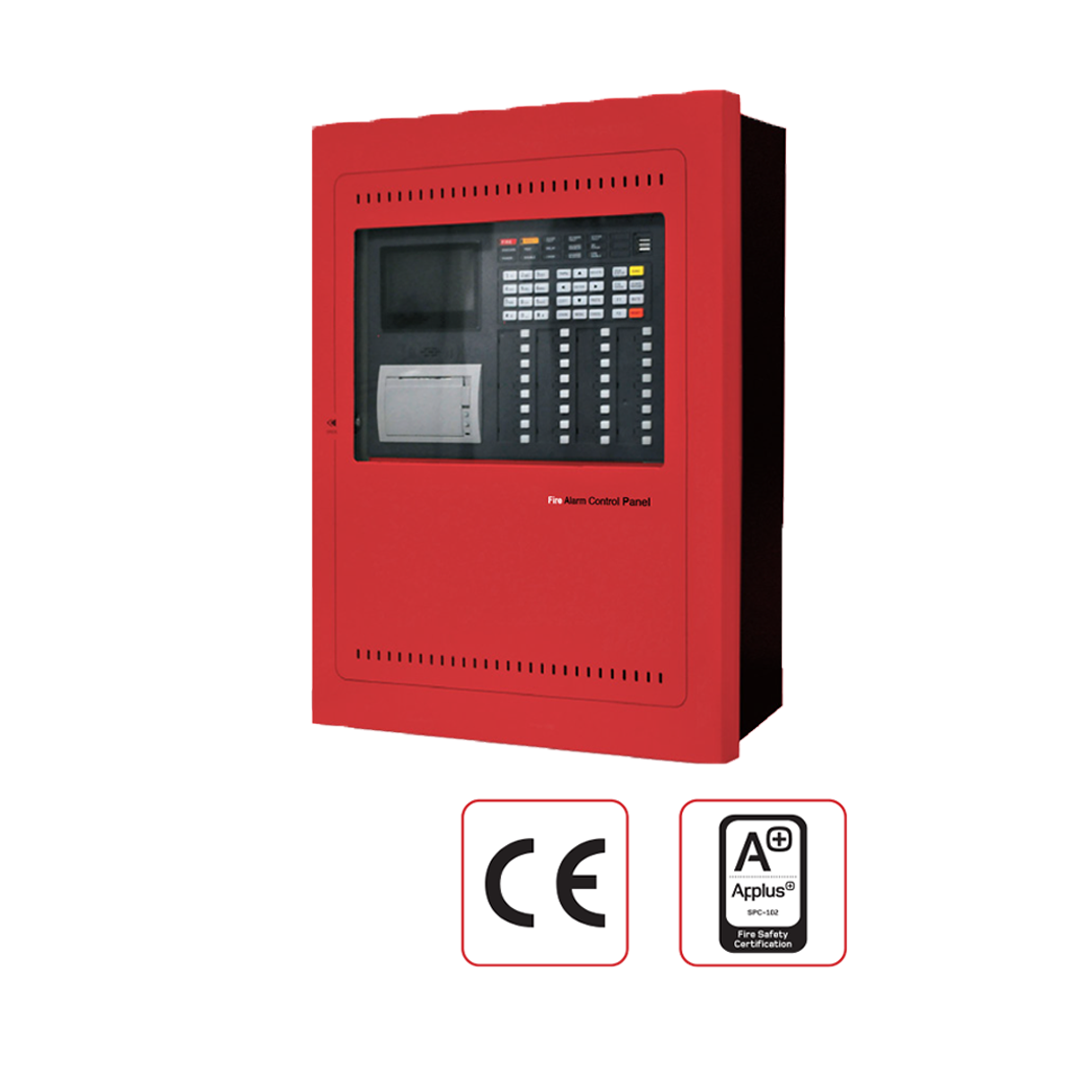

SDS200A/Addressable 4 Loop Fire Alarm Control Panel
Product Features:
• 4 loops(1020 points)
• 32 zone indicators
• Inergral printer optional
• 4.3’color screen LCD, resolution of 480×272 pixel
• A standalone programmable conventional sounder circuit output
• Fire alarm cause and effect settings can be easily performed on the control panel and PC—set
• Support the detector/module test individually
• Support for importing and exporting data/configuration through USB port
• Hierarchy management with three access levels
• Network up to 1020 panels (Ethernet connection) or 60 panels (CAN connection).
• Comply with EN54-2/EN54-4, Certified by APPLUS & CE
Related products
-
Foam Extinguishers
Description:
Foam Fire Extinguishers are effective on class A & B fire.
AFFF is an extinguishing agent which seals the burning surface against ignition.
All Extinguishers are coated internally for optimal protection against rust and corrosion.
A foam extinguisher is good for general use, suitable for the majority of business premises.
The valve provided with safety release valve to release the excess pressure.
-
Addressable Smoke with Sounder
Description:
Fire safety is important and integral in every establishment. Preventing fire hazards is a responsibility of every building owner. Lives will be at risk if an institution fails to follow fire protocols set by the government and it can also lead to immeasurable costs and lawsuits as well. An addressable smoke with sounder is a relatively new fire-safety device that can be incorporated in different buildings and establishment to prevent fires and accidents caused by fires.
PHLOX Security & Safety Equip. LLC is a fire fighting and fire alarms supplier based in Sharjah, UAE. We also install fire-prevention alarms and systems and we have a wide range of products for different fire-preventive measures needed. Part of our product offerings are affordable and cost-efficient addressable smoke with sounder in UAE.
At PHLOX Security & Safety Equip. LLC, we offer the GST Addressable Smoke with Sounder Beacon Base I-9406. This alarm sounder has a sound output ranging from 85 – 92 db. It also has 16 different programmable tones. It also comes in two colors, ABS and ivory white. This specific addressable alarm system is perfect for establishments such as restaurants, hotels, residential, retail, and commercials buildings. It also has a customizable feature that allows the sounder strobe to activate whenever the detector activates making this unit ideal for sleeping areas and can alert sleeping individuals.
Another great feature of the addressable smoke with sounder is its sandwich design which does not consumes a lot of space and can be easily be mounted in ceilings with minimal installation effort. It is also loop powered which means it does not need any additional cabling. For primary evacuation up to 30 units can be installed in its loop; however, for an early notification system set-up, more than 100 units can be installed in the loop.- GST Brand
- Bi-Color
- 85 dB Sounder
-
Addressable Sounder
Description:
Providing two tones, Initiated by shorting External terminals, not affected by Loop power cut.
Polarity insensitive Signal Loop and Power Loop, with features of cable checking in case of power cut.
- Operation voltage: 24VDC Loop (16V-28V), 24VDC Power Supply
- Operation Current:
- Loop: Standby Current 1mA, Alarm current 5mA
- Power Supply: Standby Current 3mA, Alarm Current 50mA
- Sounder output: 94dB @ 1 Metre
- Polarized 2-core for loop and Polarized 2-core for loop
Related products
-
Exit Light – UL Listed
Description:
Is Designed to be slim and lightweight, low power consumption, Low EMI and specially equipped with a customized propriety Hybrid IC and super bright white LED and longer life-span. Easy and Fast installation.
- Emergency Duration: 3 hrs
- Working Temperature: -10°C to 50°C
- White Aluminum alloy housing
- Transparent acrylic panel
- Innovative, Universal mounting
- Long life LED light source
- Working Voltage: AC120V/277V 60Hz
- AC Power: 5W
- Charging time: 24 hours
- Emergency Duration time: more than 3 hours
- Light source: LED 12 pcs
- Battery: Ni-CD 4.8V 650mAH
- Working Temperature: -10°C- 40°C
- Working Humidity: 90% RH
- Battery over discharge protection
- Charging LED Indicator and test button
- Installation: Wall side or ceiling mounting
-
Fire Alarm Cable – UL Listed
Description:
Fire safety should not be taken lightly. Placing very high fire-safety preventive measures is important since it keeps people safe from danger and harm. It can also minimize the cost from damage recovery and prevent future costs due to possible lawsuits. It is as important to place a good effort in knowing what particular safety measures are needed to prevent fire-related accidents.
Fire alarm cables is one case as well. Since these cables are used for fire alarms and fire-preventive measures, these cables should be able to function while there is an ongoing fire. Installing regular wires may cause larger fires or worse can lead to accidents since these wires are not specially made for the situation. There are a lot of considerations needed especially if you want to ensure the proper installation of your fire alarm system in your establishment. Luckily, PHLOX Security & Safety Equip. LLC is here to help you with your fire-related equipment needs.
PHLOX Security & Safety Equip. LLC is a fire fighting and fire alarms supplier based in Sharjah, UAE. We also install fire-prevention alarms and systems and we have a wide range of products for different fire-preventive measures needed, and part of our product offerings are specialized fire alarm cables that are UL listed in UAE. Particularly, we offer Soloarti Fire Alarm Cables that can come in two dimensions:1.5 mm x 2 core x 100 meter and 1mm x 2 core x 100 meter. This particular fire alarm cable can withstand to temperatures up to 250OC and are halogen free in its composition. More importantly, these multicore cables are fire resistant and can maintain circuit integrity in high temperatures. It prevents smokes and noxious fumes from interfering with the internal circuitry of sensitive equipment lessening the potential damage by acid forming gases.- Soloarti Brand
- 1.5 mm x 2 core x 100 meter
- 1 mm x 2 core x 100 meter
- Halogen Free
- Withstand up to 250°C
-
Addressable Smoke with Sounder
Description:
Fire safety is important and integral in every establishment. Preventing fire hazards is a responsibility of every building owner. Lives will be at risk if an institution fails to follow fire protocols set by the government and it can also lead to immeasurable costs and lawsuits as well. An addressable smoke with sounder is a relatively new fire-safety device that can be incorporated in different buildings and establishment to prevent fires and accidents caused by fires.
PHLOX Security & Safety Equip. LLC is a fire fighting and fire alarms supplier based in Sharjah, UAE. We also install fire-prevention alarms and systems and we have a wide range of products for different fire-preventive measures needed. Part of our product offerings are affordable and cost-efficient addressable smoke with sounder in UAE.
At PHLOX Security & Safety Equip. LLC, we offer the GST Addressable Smoke with Sounder Beacon Base I-9406. This alarm sounder has a sound output ranging from 85 – 92 db. It also has 16 different programmable tones. It also comes in two colors, ABS and ivory white. This specific addressable alarm system is perfect for establishments such as restaurants, hotels, residential, retail, and commercials buildings. It also has a customizable feature that allows the sounder strobe to activate whenever the detector activates making this unit ideal for sleeping areas and can alert sleeping individuals.
Another great feature of the addressable smoke with sounder is its sandwich design which does not consumes a lot of space and can be easily be mounted in ceilings with minimal installation effort. It is also loop powered which means it does not need any additional cabling. For primary evacuation up to 30 units can be installed in its loop; however, for an early notification system set-up, more than 100 units can be installed in the loop.- GST Brand
- Bi-Color
- 85 dB Sounder
-
Addressable Manual Call Point
Description:
- Optional Back box for surface mount
- Re-settable (non-Breaking glass) with special key
- Easy 1st and 2nd Fix Installation
- Semi Flush or surface mount installation
- Pleasing Style design
- Protection Rating: IP55
- Operating Voltage: 24V DC
- Operating Current:
- Stand by Current: 0
- Alarm Current: 30mA
