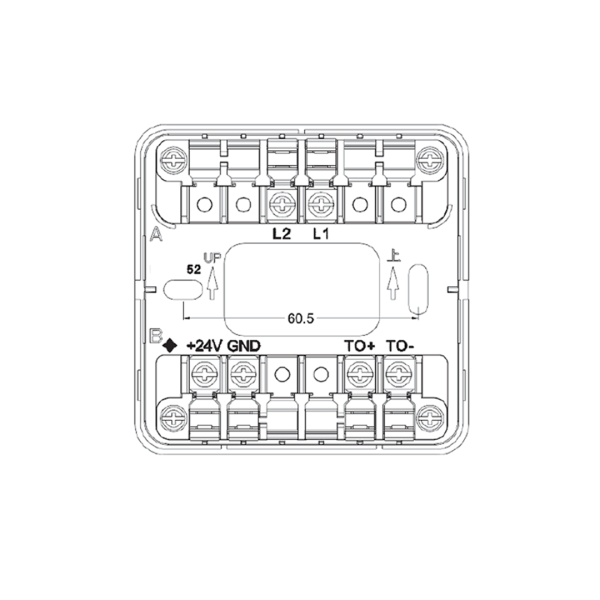

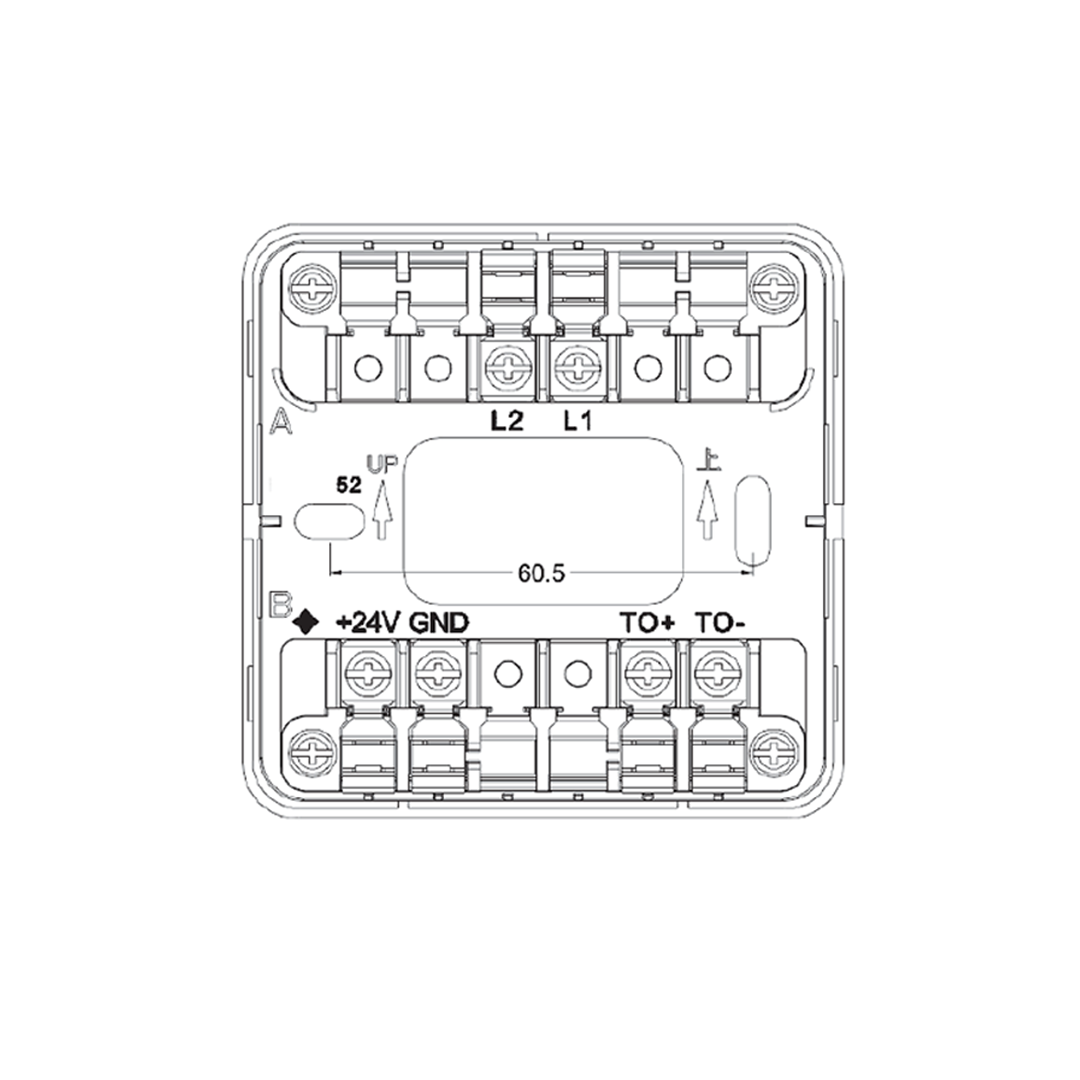

Addressable Zone Module Base
SDS52
Sutable for Only SDS9052A
Related products
-
Wet Chemicals
Description:
Wet Chemical Extinguishers are effective on class A & F fires.
All extinguishers have been coated internally for optimum protection against rust and corrosion.
Non-toxic, non-corrosive, non-irritant and is harmless to humans and animals.
Contains No halogens, CFC’s or toxic products.
Wet Chemical extinguishers are manufactured in accordance with the requirements of International Standards.
-
Addressable Heat Detector
Description:
This detector is extremely reliable for use in places that may have high dust levels or a smoky environment, making a normal smoke detector unsuitable.
- Fixed temperature and rate of rise heat detection
- It is aesthetically pleasing with a low profile, unobtrusive design that will complement modern building designs.
- Electronically addressed
- Twin LED for 360º vision
- With Remote indicator output
-
Wet Alarm Check Valves
Description:
Alarm Check Valve is a hydraulically operated external resetting differential latching style valve designed for use where quick-opening and total flooding of sprinkler system piping is desired.
It is used as an automatic water control valve in Deluge, Dry Pipe, or Precaution systems, as well as Foam-water sprinkler systems.
-
Addressable Sounder
Description:
Providing two tones, Initiated by shorting External terminals, not affected by Loop power cut.
Polarity insensitive Signal Loop and Power Loop, with features of cable checking in case of power cut.
- Operation voltage: 24VDC Loop (16V-28V), 24VDC Power Supply
- Operation Current:
- Loop: Standby Current 1mA, Alarm current 5mA
- Power Supply: Standby Current 3mA, Alarm Current 50mA
- Sounder output: 94dB @ 1 Metre
- Polarized 2-core for loop and Polarized 2-core for loop
Related products
-
Addressable Manual Call Point
Description:
- Optional Back box for surface mount
- Re-settable (non-Breaking glass) with special key
- Easy 1st and 2nd Fix Installation
- Semi Flush or surface mount installation
- Pleasing Style design
- Protection Rating: IP55
- Operating Voltage: 24V DC
- Operating Current:
- Stand by Current: 0
- Alarm Current: 30mA
-
Foam Extinguishers
Description:
Foam Fire Extinguishers are effective on class A & B fire.
AFFF is an extinguishing agent which seals the burning surface against ignition.
All Extinguishers are coated internally for optimal protection against rust and corrosion.
A foam extinguisher is good for general use, suitable for the majority of business premises.
The valve provided with safety release valve to release the excess pressure.
-
Check Valves
Description:
A check valve is probably in the discharge line of the pump.
It allows flow in one direction and automatically prevents back flow (reverse flow) when fluid in the line reverses direction.
Valve Standard: Conforms to AWWA C508, Clear waterway
Working Pressure: 21 Bars/300PSI
Fusion bonded epoxy coated RAL3002
Flanged Ends: ANSI B16.1 Class 125/150/250, EN 1092-2 PN10/PN16
BS10 Table D/ Table E, Stainless Steel Stem
-
Fire Hose Reels
Description:
Fire hose reels are designed and manufactured to BSEN 671-1:2001. The hose reels are manufactured from 1.5mm thick ribbed side plates for increased strength and coated with UV resistant Epoxy Powder Coating in Red, Stainless. The reel plate edge is rounded to prevent sharp edges. Hose made from natural rubber reinforced by double layer yarns. The outer and inner surfaces of the hose are smooth and seamless and can be withstand a pressure up to 20 bar.
The test pressure of the hose reel is 30 bar. The bursting pressure of the hose reel is 60 bar and above. The flexibility of the hose reel is high so that can be used without alterations for mounting with inlet to left or right of the reel.
The hose reel is fitted with specially designed glandless type drip proof seals which have been subjected to hydrostatic test pressure of 20 bar.
Steel hose reels can be supplied on request.
-
Water Extinguishers
Description:
Water Fire Extinguishers are effective on class A fire.
All Extinguishers are coated internally for optimal protection against rust and corrosion.
The valve is provided with safety release valve to release the excess pressure.
Cylinders of different capacity can be supplied upon request.
Water Fire Extinguishers are cost-effective
